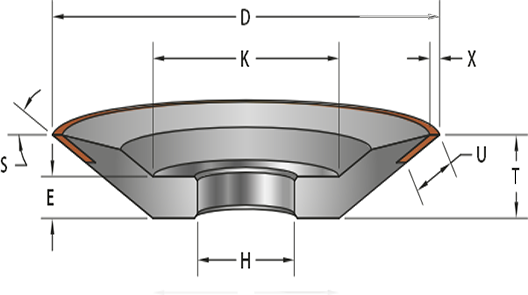

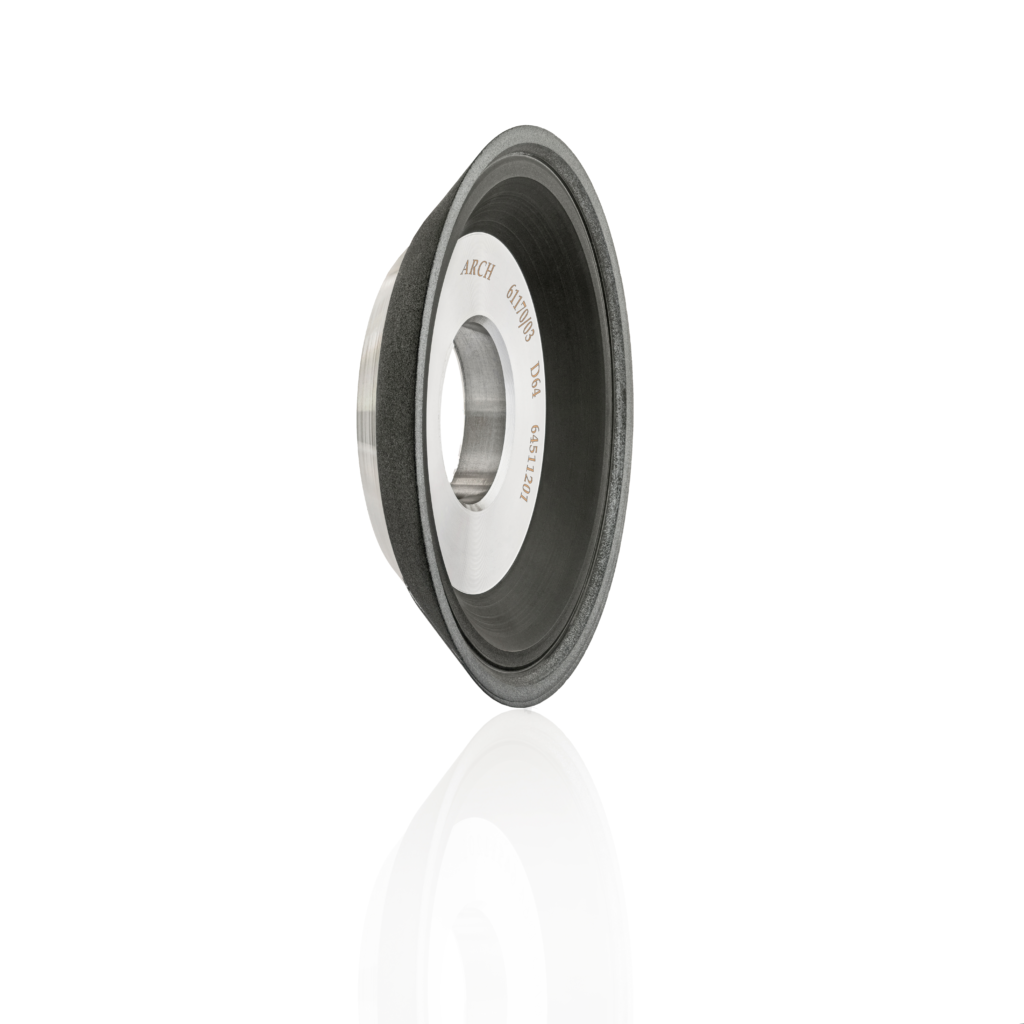

12A2/45° / 12V9/45° / 12V9/22°
Wheel Diameters
Select

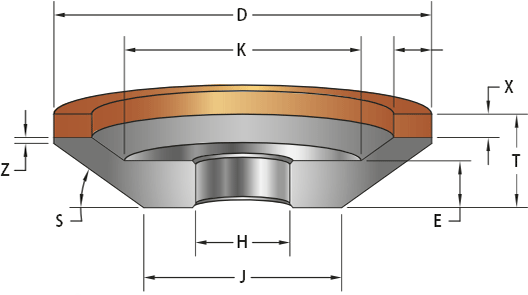

Common Dimensions 12A2 wheels Diameter=50 mm
W
X
H
Abrasive Bond
Width
Abrasive Bond
Hight
Bore Diameter
2 6 20
4 6 20
4 6 20
5 6 20
6 6, 10 20, 31.75
8 6, 10 20, 31.75
Common Dimensions 12A2 wheels Diameter=75 mm
W
X
H
Abrasive Bond
Width
Abrasive Bond
Hight
Bore Diameter
2 6 20
4 6 20
4 6 20
5 6 20
6 6, 10 20, 31.75
8 6, 10 20, 31.75
Common Dimensions 12A2 wheels Diameter=100 mm
W
X
H
Abrasive Bond
Width
Abrasive Bond
Hight
Bore Diameter
2 6 20
2 6 20
5 6 20
5 6 20
6 6, 10 20, 31.75
8 6, 10 20, 31.75
10 6, 10 20, 31.75
12 6, 10 20, 31.75
15 6, 10 20, 31.75
20 6, 10 20, 31.75
Common Dimensions 12A2 wheels Diameter=125mm
W
X
H
Abrasive Bond
Width
Abrasive Bond
Hight
Bore Diameter
6 6, 10 20, 31.75
8 6, 10 20, 31.75
10 6, 10 20, 31.75
12 6, 10 20, 31.75
15 6, 10 20, 31.75
20 6, 10 20, 31.75
22 6, 10 20, 31.75
Common Dimensions 12A2 wheels Diameter=150mm
W
X
H
Abrasive Bond
Width
Abrasive Bond
Hight
Bore Diameter
6 6, 10 20, 31.75
8 6, 10 20, 31.75
10 6, 10 20, 31.75
12 6, 10 20, 31.75
15 6, 10 20, 31.75
20 6, 10 20, 31.75
22 6, 10 20, 31.75
25 6, 10 20, 31.75
This wheel type is offered in
a diverse range of Diamond and Cubic Boron Nitride (C.B.N) bonding types, including Resin, Hybrid, Metal, and Electroplated bonds. Additionally, it is available in various grit sizes.
Typical bonds for round cutter grinding are an Hybrid or Resin bonds.
Common Wheels specifications for round cutter Flute and Cylinder Grinding are:
Carbide Flute: Bond 644 & 645. Grit size D46, D54 & D64
HSS Flute: Bond B9, Grit size B91 to B126
Common Dimensions 11V9 wheels Diameter=50 mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 11V9 wheels Diameter=75mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 11V9 wheels Diameter=100mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 11V9 wheels Diameter=125mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 11V9 wheels Diameter=150mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
This wheel type is offered in
a diverse range of Diamond and Cubic Boron Nitride (C.B.N) bonding types, including Resin, Hybrid, Metal, and Electroplated bonds. Additionally, it is available in various grit sizes.
Typical bonds for round cutter grinding are an Hybrid or Resin bonds.
Common Wheels specifications for round cutter Flute and Cylinder Grinding are:
Carbide Flute: Bond G10, Grit size D54 & D64
HSS Flute: Bond G10B, Grit size B91 to B126
This wheel type is offered in
a diverse range of Diamond and Cubic Boron Nitride (C.B.N) bonding types, including Resin, Hybrid, Metal, and Electroplated bonds. Additionally, it is available in various grit sizes.
Typical bonds for round cutter grinding are an Hybrid or Resin bonds.
Common Wheels specifications for round cutter Flute and Cylinder Grinding are:
Carbide Flute: Bond 644 & 645. Grit size D46, D54 & D64
HSS Flute: Bond B9, Grit size B91 to B126

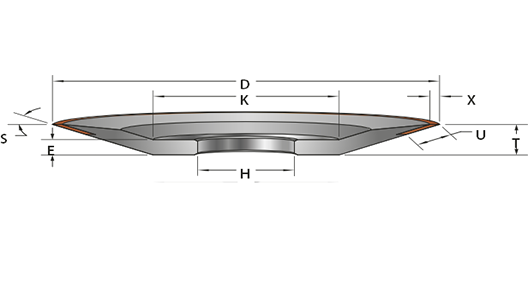

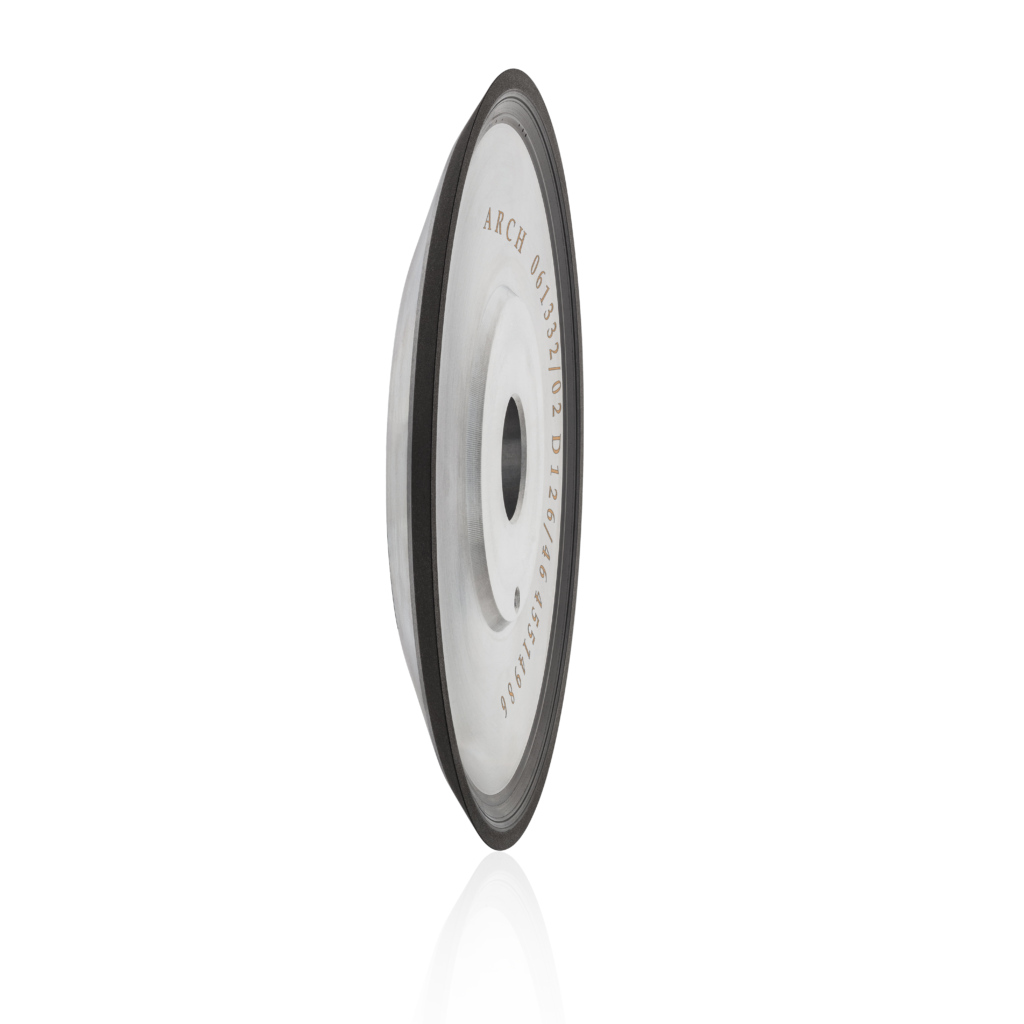

Common Dimensions 12V9/22° wheels Diameter=50 mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 12V9/22° wheels Diameter=75mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 12V9/22° wheels Diameter=100mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 12V9/22° wheels Diameter=125mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
Common Dimensions 12V9/22° wheels Diameter=150mm
2 5 8
2 5 8
2 5 8
2 5 8
2 5 8
This wheel type is offered in
a diverse range of Diamond and Cubic Boron Nitride (C.B.N) bonding types, including Resin, Hybrid, Metal, and Electroplated bonds. Additionally, it is available in various grit sizes.
Typical bonds for round cutter grinding are an Hybrid or Resin bonds.
Common Wheels specifications for round cutter Flute and Cylinder Grinding are:
Carbide Flute: Bond G10, Grit size D54 & D64
HSS Flute: Bond G10B, Grit size B91 to B126
This wheel type is offered in
a diverse range of Diamond and Cubic Boron Nitride (C.B.N) bonding types, including Resin, Hybrid, Metal, and Electroplated bonds. Additionally, it is available in various grit sizes.
Typical bonds for round cutter grinding are an Hybrid or Resin bonds.
Common Wheels specifications for round cutter Flute and Cylinder Grinding are:
Carbide Flute: Bond 644 & 645. Grit size D46, D54 & D64
HSS Flute: Bond B9, Grit size B91 to B126
