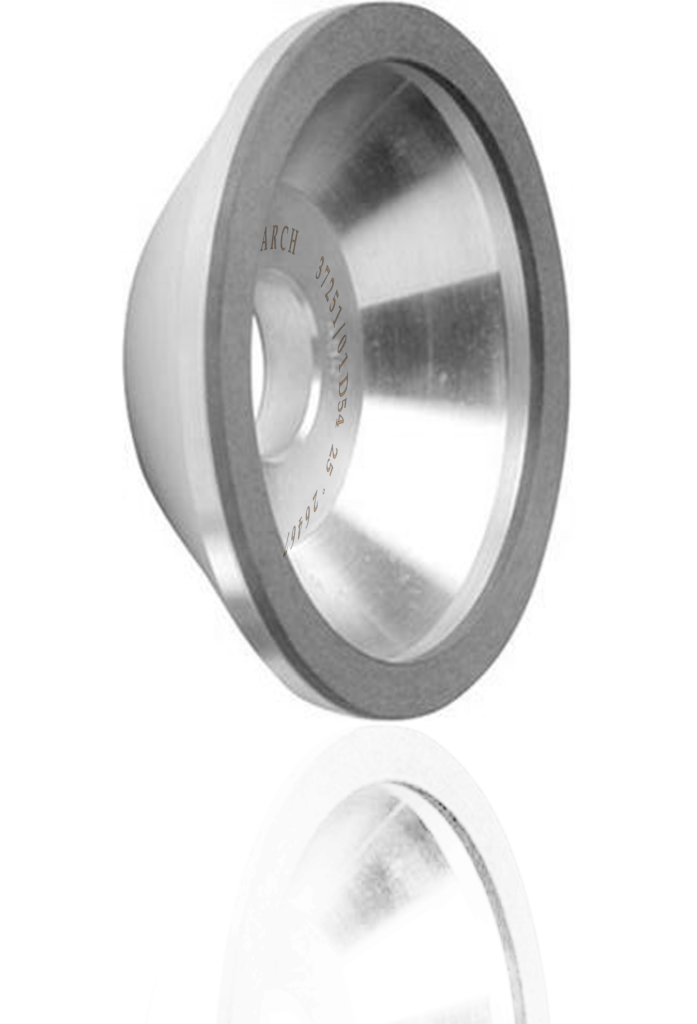

11A9 / 11V9 / 11V5
Select Wheel Diameters
Click to select the required diameter
Common Dimensions 11A9 wheels Diameter=50 mm
W X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
4 6 20
5 6 20
6 6, 10 20, 31.75
Common Dimensions 11A9 wheels Diameter=75 mm
T X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
4 6 20
5 6 20
6 6, 10 20, 31.75
8 6, 10 20, 31.75
Common Dimensions 11A9 wheels Diameter=100 mm
T X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
4 6 20
5 6 20
6 6, 10 20, 31.75
8 6, 10 20, 31.75
10 6, 10 20, 31.75
Common Dimensions 11A9 wheels Diameter=125 mm
T X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
2 6 20
4 6 20
5 6 20
6 6, 10 20, 31.75
8 6, 10 20, 31.75
10 6, 10 20, 31.75
Common Dimensions 11A9 wheels Diameter=150 mm
T X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
2 6 20
4 6 20
5 6 20
6 6, 10 20, 31.75
8 6, 10 20, 31.75
10 6, 10 20, 31.75
12 6, 10 20, 31.75
This wheel type is offered in
a diverse range of Diamond and Cubic Boron Nitride (C.B.N) bonding types, including Resin, Hybrid, Metal, and Electroplated bonds. Additionally, it is available in various grit sizes.
Typical bonds for round cutter grinding are an Hybrid or Resin bonds.
Common Wheels specifications for round cutter Flute and Cylinder Grinding are:
Carbide Flute: Bond G10. Grit size D54 & D64
HSS Flute: Bond G10B, Grit size B91 to B126
Common Dimensions 11V9 wheels Diameter=50 mm
W X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
2 6 20
3 6 20
2 10 20
3 10 20, 31.75
Common Dimensions 11V9 wheels Diameter=75 mm
W X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
2 6 20
3 6 20
2 10 20
3 10 20, 31.75
Common Dimensions 11V9 wheels Diameter=100 mm
W X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
2 6 20
3 6 20
2 10 20
3 10 20, 31.75
Common Dimensions 11V9 wheels Diameter=125 mm
W X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
2 6 20
3 6 20
2 10 20
3 10 20, 31.75
Common Dimensions 11V9 wheels Diameter=150 mm
W X H
Abrasive Bond Abrasive Bond Bore
Width Thikness Diameter
2 6 20
3 6 20
2 10 20
3 10 20, 31.75
This wheel type is offered in
a diverse range of Diamond and Cubic Boron Nitride (C.B.N) bonding types, including Resin, Hybrid, Metal, and Electroplated bonds. Additionally, it is available in various grit sizes.
Typical bonds for round cutter grinding are an Hybrid or Resin bonds.
Common Wheels specifications for round cutter Flute and Cylinder Grinding are:
Carbide Flute: Bond G10. Grit size D54 & D64
HSS Flute: Bond G10B, Grit size B91 to B126
